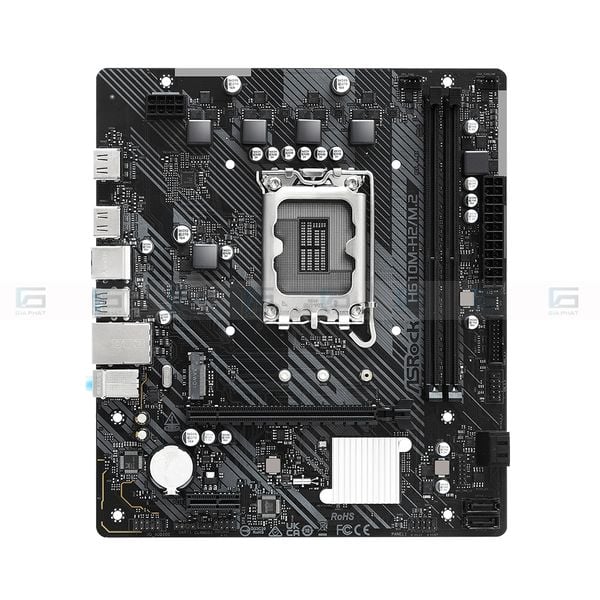

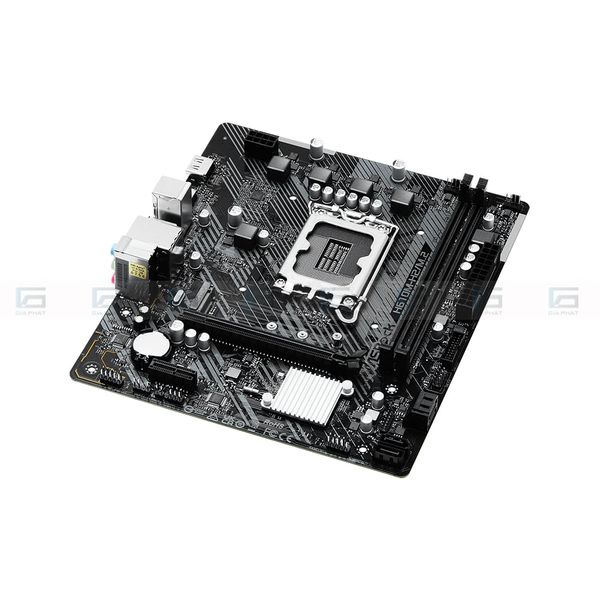

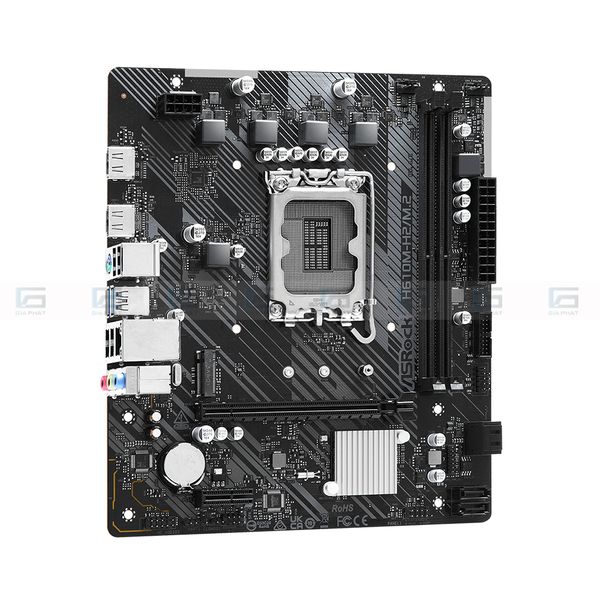

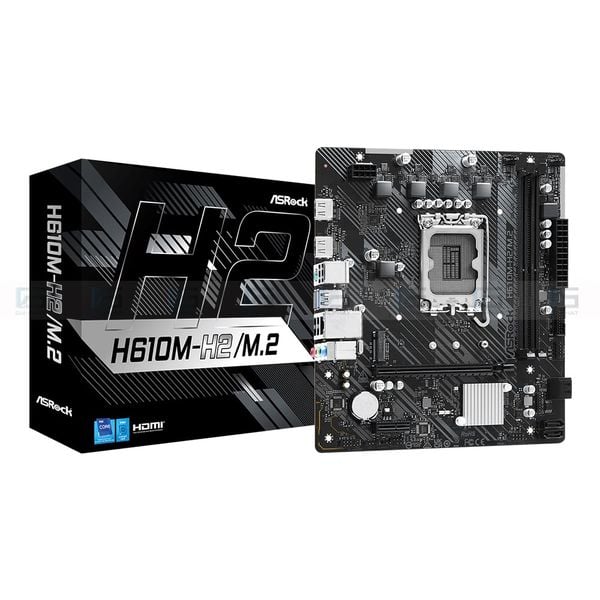

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Bo mạch chủ Asrock H610M-H2M.2 (M-ATX, DDR4, tối đa 64GB RAM)

Thương hiệu: Asrock

Mã sản phẩm: Asrock H610M-H2M.2

1,640,000₫

Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700)
3+1+1 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 3200
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: 2 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer
====================
Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
CPU hỗ trợ	Intel
Chipset	H610
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
Khe cắm mở rộng	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)
Ổ cứng hỗ trợ	Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Cổng kết nối (Internal)	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

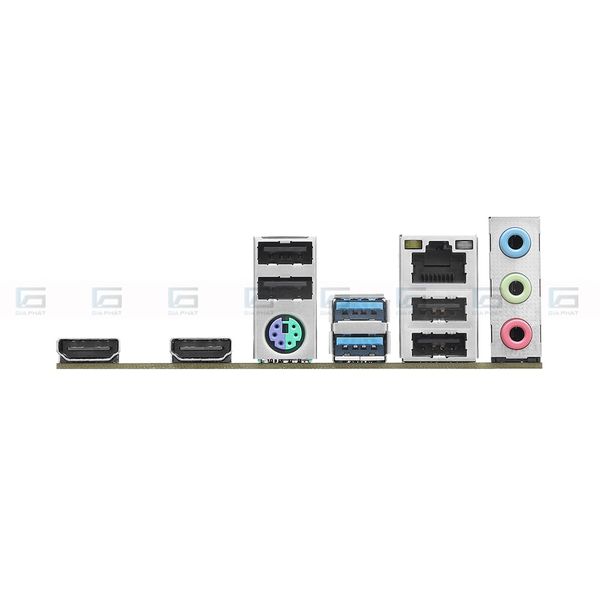

Cổng kết nối (Back Panel)	- 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
Kích cỡ	- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
