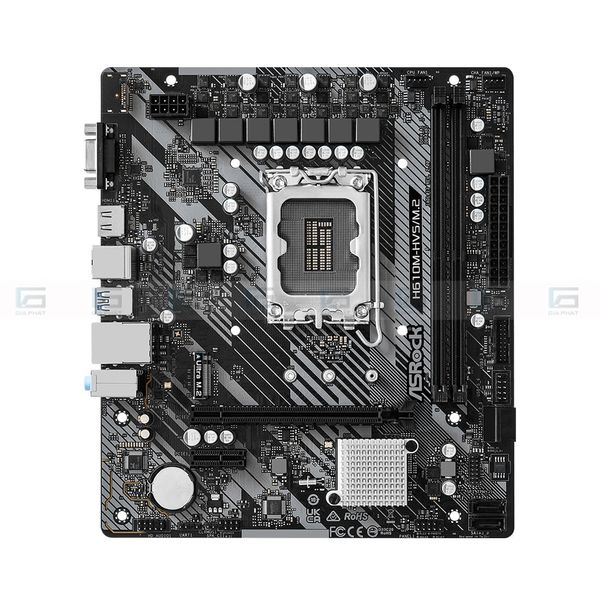

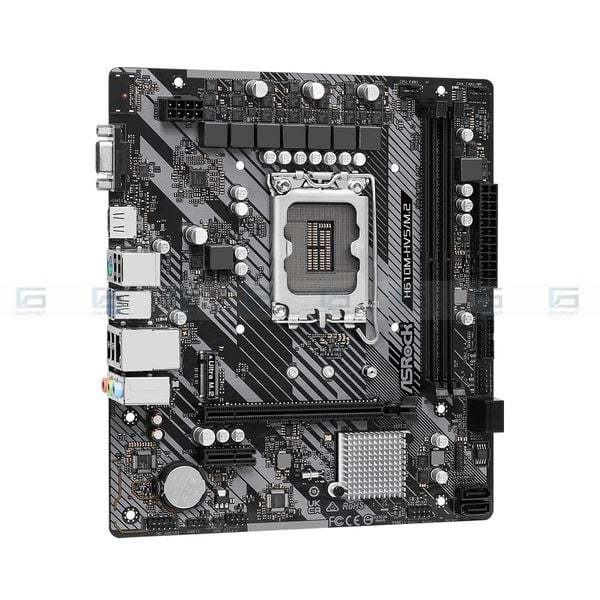

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Bo mạch chủ Asrock H610M-HVSM2 R2.0 (M-ATX, DDR4, tối đa 64G RAM)

Thương hiệu: Asrock

Mã sản phẩm: Asrock H610M-HVSM2 R2.0

1,640,000₫

Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
6+1+1 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 3200
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
====================
Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	H610M-HVS/M.2 R2.0
CPU hỗ trợ	Intel
Chipset	H610
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
Khe cắm mở rộng	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) *Supports NVMe SSD as boot disks
Ổ cứng hỗ trợ	Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Cổng kết nối (Internal)	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel)	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Kích cỡ	- Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm - Solid Capacitor design
