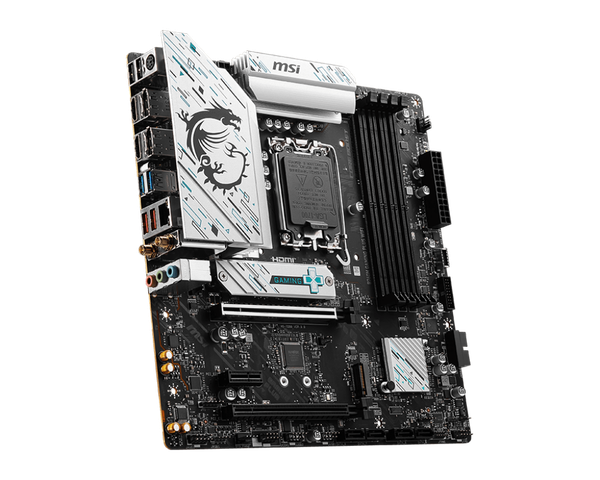

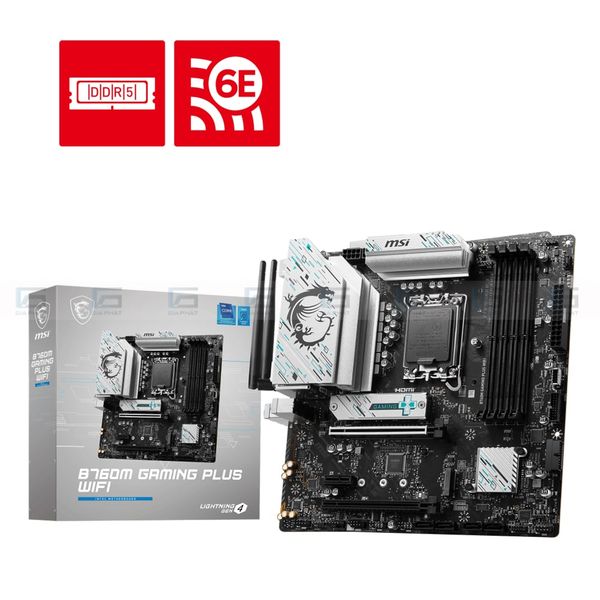

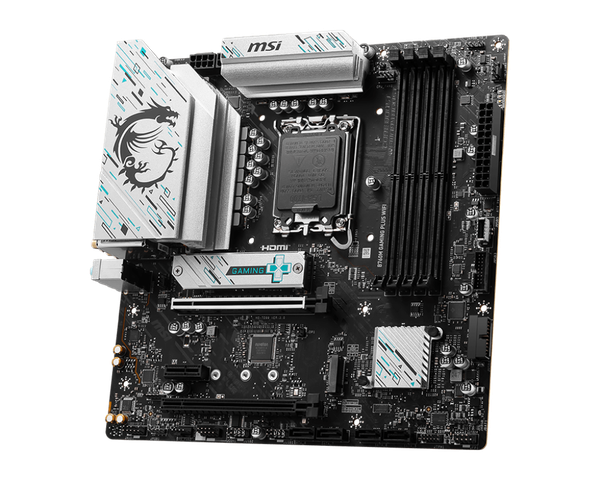

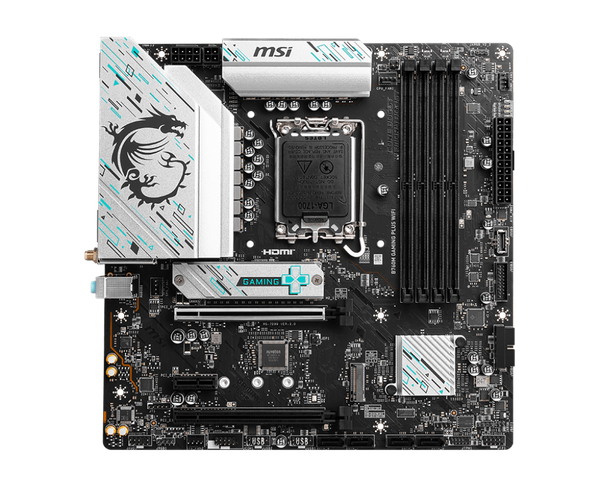

Bo mạch chủ MSI B760M GAMING PLUS WIFI (M-ATX, DDR5, LGA1700) - Full VAT

Thương hiệu: MSI
Mã sản phẩm: B760M GAMING PLUS WIFI
3,675,000₫

Giá đã bao gồm VAT

Tên Hãng: MSI
Model: B760M GAMING PLUS WIFI DDR5
CPU hỗ trợ: Intel
Chipset: INTEL B760
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 & 13, 14, Pentium Gold and Celeron
Kích thước: mATX
Khe cắm RAM: 4 khe (Tối đa 256GB)
Khe cắm mở rộng: 2x PCI-E x16 slot, 1x PCI-E x1 slot
Khe cắm ổ cứng: 2x M.2, 4x SATA 6G

==================

Bảo hành 36 tháng

Sẵn trong kho
Yên tâm mua hàng tại Vi Tính Gia Phát
Hotline hỗ trợ: 0392 033 396 - 0798 270 369
Freeship nội thành TP.HCM (Bán kính 15km)
Bảo hành tận nhà MIỄN PHÍ trong tháng đầu (TP.HCM)
Tư vấn khách hàng tận tình - chuyên nghiệp

Đặc điểm nổi bật

Thông số kĩ thuật
Sản phẩmBo mạch chủ
Tên HãngMSI
ModelB760M GAMING PLUS WIFI DDR5
CPU hỗ trợIntel
ChipsetINTEL B760
RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Khe cắm mở rộng2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Ổ cứng hỗ trợ2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Cổng kết nối (Internal)1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

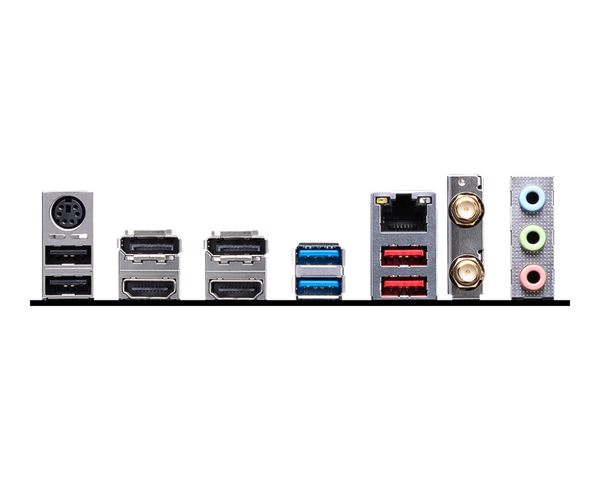

Cổng kết nối (Back Panel)Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors
LAN / WirelessRealtek® RTL8125BG 2.5G LAN
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Kích cỡmATX
243.84mmx243.84mm
