Bo mạch chủ B760M-K Huananzhi (LGA 1700, DDR4, M-ATX) - Chính hãng

Bo mạch chủ B760M-K Huananzhi (LGA 1700, DDR4, M-ATX) - Chính hãng

Thương hiệu: Huananzhi

Mã sản phẩm: B760M-K Huananzhi

1,490,000₫ 1,590,000₫

-7%

· Hỗ trợ bộ xử lý nền tảng Intel LGA1700,
· Hỗ trợ bốn kênh bộ nhớ DDR4 3200/2933/2666/2400MHz,
· 1 x PCI Express 4.0x16 ，1 x PCI Express 3.0 x1,
· 2x M.2 2280 NVME PCIE X4 3.0，1x M.2 WIFI (Hỗ trợ CNVI),
· Card mạng Realtek Gigabit RTL8111H · 1x Giao diện,
VGA · 4x Giao diện USB3.0，2x Giao diện USB2.0.

Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Model	HUANANZHI B760M-K Motherboard
Main chipset	Intel B760
CPU Socket	Support Intel LGA1700 platform processor
Memory slot	2 x DDR4 memory slot
Memory standard	Support dual channels DDR4 3200/2933/2666/2400MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB
Storage interface	3 x SATA 3.0 6Gbps
Expansion Slots	1 x PCI Express 4.0x16 ，1 x PCI Express 3.0 x1
Expansion interface	2x M.2 2280 NVME PCIE X4 4.0，1x M.2 WIFI (Support CNVI)
Soud Track	Realtek High Fidelity Audio
Network Card	Realtek Gigabit network card RTL8111H
Power interface	24PIN+8PIN
FAN PIN	1xCPU_FAN PIN，1xSYS_FAN PIN
power supply	6-phase power supply
PCB layers	4-layer PCB
Dimension	218*170MM M-ATX

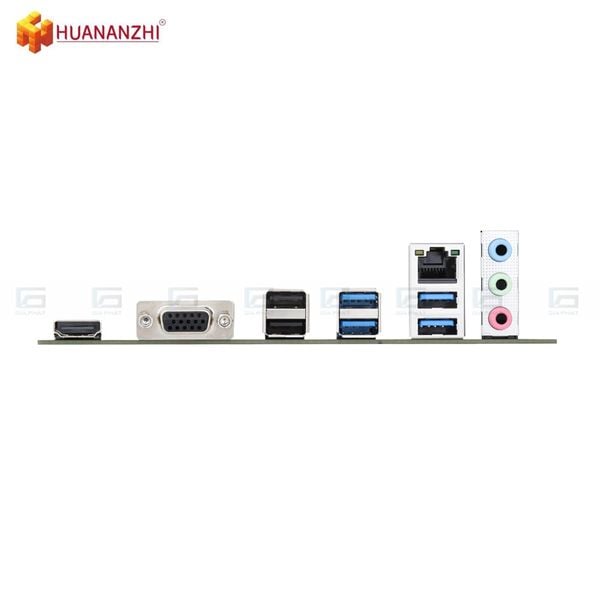

Rear panel interface	4x USB3.0 interface，2x USB2.0 interface，1x Inetwork interface，1x 3-hole audio interface，1x VGA
Front panel interface	1xUSB2.0 PIN，1xUSB3.0 PIN，1xFront audio PIN，1xCOM PIN，1xDebug PIN，1xPower on/restart pin，1xDebug indicator
Support system	Windows10 Windows11
BIOS	AMI UEFI BIOS
Packing list	1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat
