Bo mạch chủ Gigabyte Z790 GAMING X AX DDR5 (ATX, Wifi+Bluetooth) - Full VAT

Bo mạch chủ Gigabyte Z790 GAMING X AX DDR5 (ATX, Wifi+Bluetooth) - Full VAT

Thương hiệu: Gigabyte

Mã sản phẩm: Gigabyte Z790 GAMING X AX DDR5

7,599,000₫

Giá đã bao gồm VAT

Model: Z790 GAMING X AX
CPU hỗ trợ: Intel
Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 192GB)
Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots, 1 x PCI Express 3.0 x16 slots
Khe cắm ổ cứng: 4 x M.2 slots, 6 x SATA 6Gb/s ports

=====================

Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	Z790 GAMING X AX
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)
Khe cắm mở rộng	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

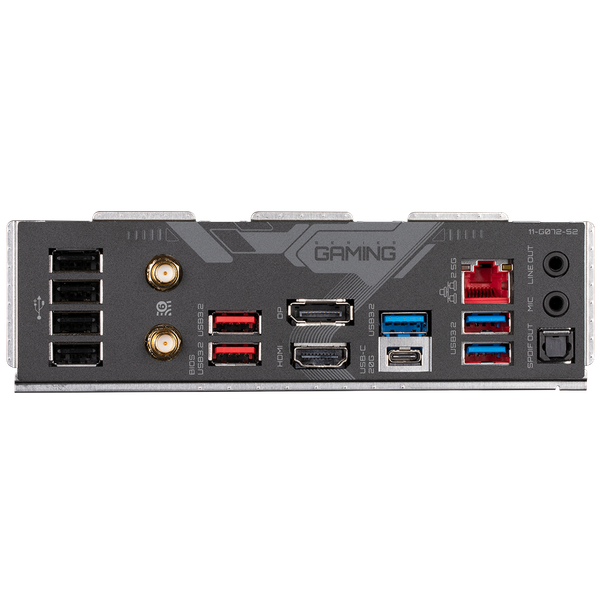

Cổng kết nối (Back Panel)	4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x DisplayPort 1 x HDMI 2.0 port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
