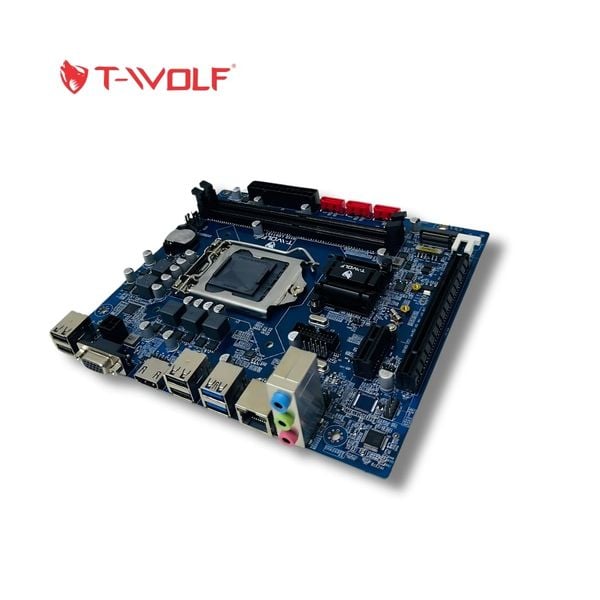

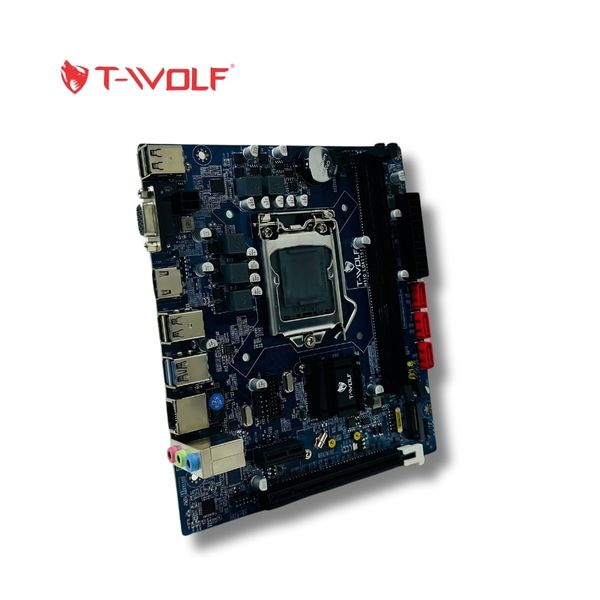

Bo mạch chủ H110 T-Wolf (DDR4, LGA1151, M-ATX)

Bo mạch chủ H110 T-Wolf (DDR4, LGA1151, M-ATX)

Thương hiệu: T-Wolf

Mã sản phẩm: H110 T-Wolf

970,000₫

Chipset Intel H110 Express, LGA 1151 S/p CPU Skylake Gen 6-7-8th
RAM 2xDDR4 Dual channel 2133/2400/2666 MHz s/p Up to 32GB
VGA-HDMI, Lan 1000M, Audio 5.1, 4xUSB2.0x4, 2xUSB3.0
1xM2 NVMe, 1x PCI Express 16X, 1xPCI Express 1X, 3xSata3.0, MicroATX

====================

Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

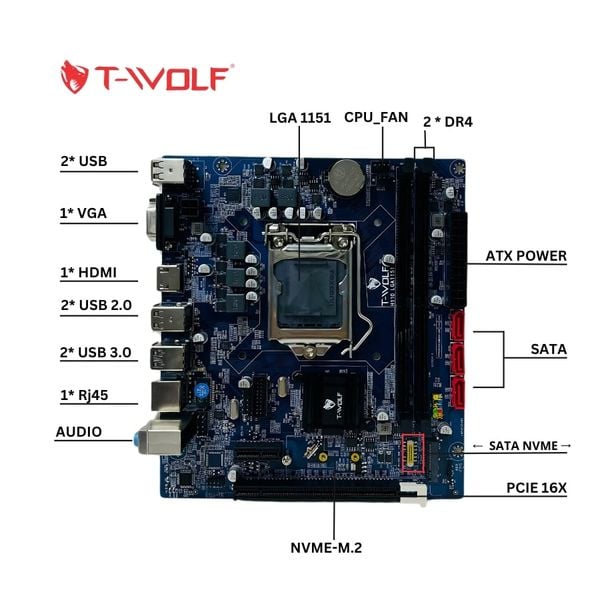

Thương hiệu	T-WOLF
Mã sản phẩm	TW-H110
SKU	686868110
CPU	Supports 6/7/8th(SKYlake). Intel 14nm CPUs （LGA1151）
Chipset	Intel H110 Express Chipset
Memory	2*240-pin DDR4 SDRAM slots
	Memory up to 32GB
	Supports dual channal DDR4 1866/2133/2400/2666 MHZ

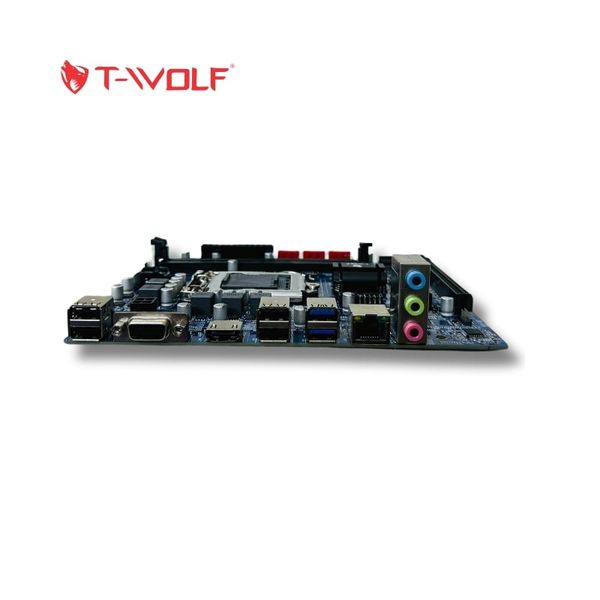

I/O interface	4xUSB2.0
	2xUSB 3.0
	1x VGA port
	1x HDMI port
	1x RJ45 port
	1x 3-in-1 Audio port(line in/line out/MIC in)
Onboard interface	1x 24-pin ATX power connector
	1x 4-pin ATX 12V power connector
	2x USB connector, can support 2USB 2.0 & 2USB 3.0
	1x F-AUDIO connector
	1x F-PANEL connector
	1x F-SPEAKER connector
	1x FAN connector
	1x LPC-DEBUG connector
Integrated Sound	Realtek ALC 6-channal HD Audio Codec onboard
	Provides front audio interface
	Provides front stereo mic interface
Storage	3 x SATA 3.0 (6GB/s) ports
Integrated lan	Realtek 100/1000 Mbps LAN onboard
Expansion Slot	1x PCI Express x16 slot,1x PCI Express x1 slot
Expansion Slot	1x NVME/NGFF connector
Dimension	Micro-ATX architecture(17*19cm)
