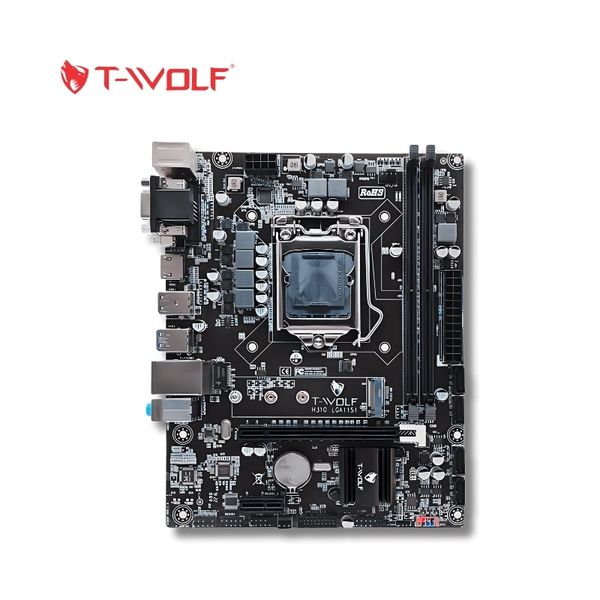

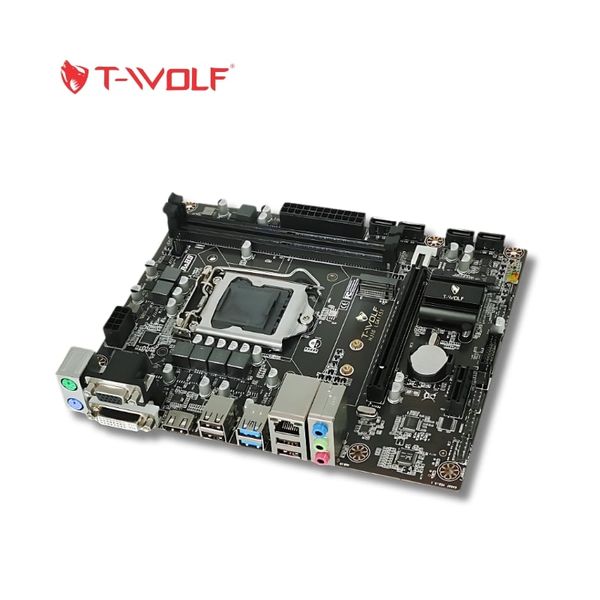

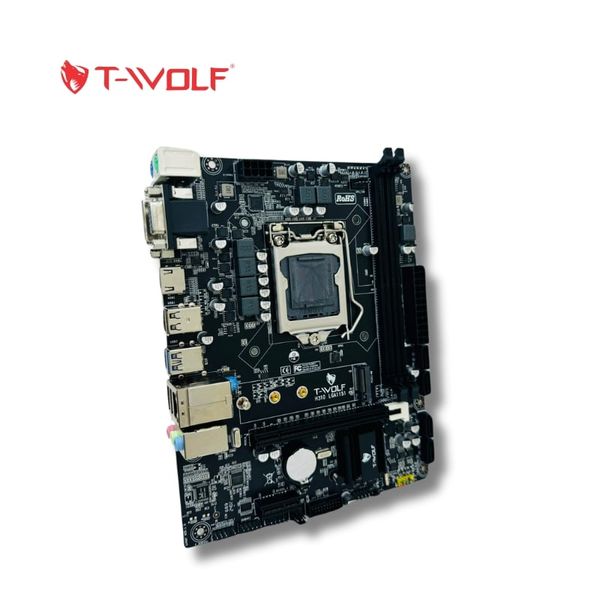

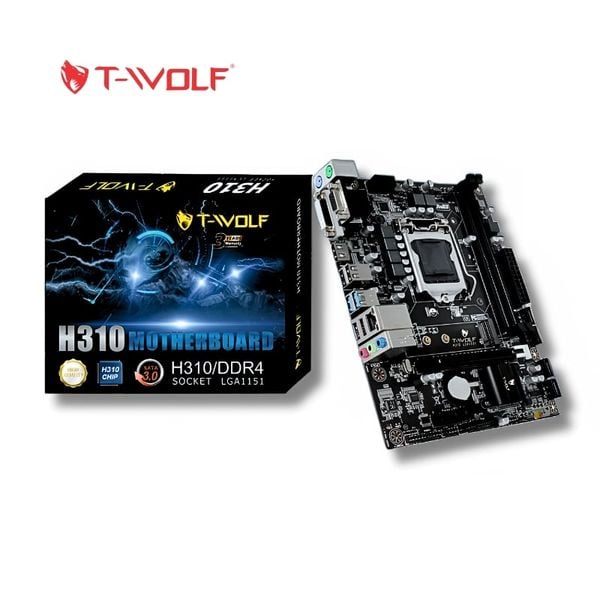

Bo mạch chủ H310 T-Wolf (DDR4, M-ATX, LGA1151)

Bo mạch chủ H310 T-Wolf (DDR4, M-ATX, LGA1151)

Thương hiệu: T-Wolf

Mã sản phẩm: H310 T-Wolf

1,145,000₫

Chipset Intel H310 Express, LGA 1151 S/p CPU Ivy Bridge Gen 8-9th
RAM 2xDDR4 Dual channel 2133/2400/2666 MHz s/p Up to 32GB
VGA-DVI-HDMI, Lan 1000M, Audio 5.1, 4xUSB2.0x4, 2xUSB3.0
1xM2 NVMe, 1x PCI Express 16X, 1xPCI Express 1X, 4xSata3.0, MicroATX

====================

Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Thương hiệu	T-WOLF
Mã sản phẩm	TW-H310
SKU	686868310
CPU	Supports 8/9rd Gen(lvy Bridge). CPU (LGA1151)
Chipset	Intel H310 Express Chipset
Memory	2*288-pin DDR4 SDRAM slots up to 32GB
Memory	Supports DDR4 2666/2400/2133 memory

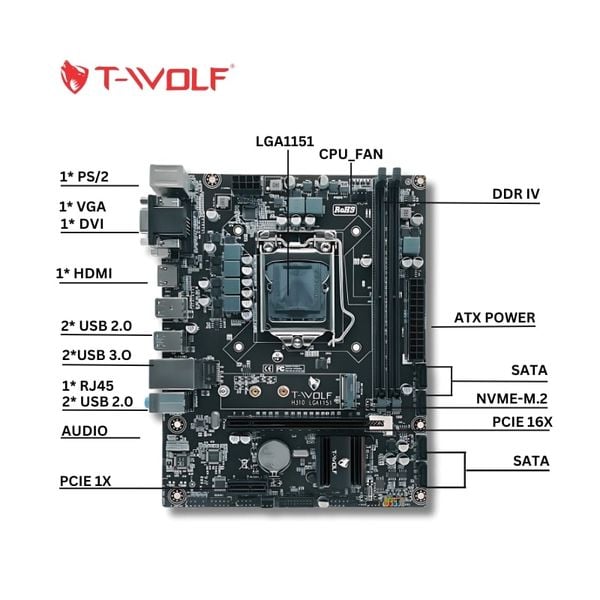

I/O interface	1xP/S2 keyboard port,1xPS/2 mouse port
	1xDVI port/1xVGA port/1xHDMI port
	4xUSB2.0/2XUSB3.0/1xRJ45 port
	1×3-in-1 Audio port(line in/line out/MIC in)
Onboard interface	1×24-pin ATX power connector/1×8-pin ATX 12V power connector
	2xUSB connector, can support 2USB2.0 & 2USB3.0
	1xF-AUDIO connector/1xF-PANEL connector
	1xF-SPEAKER connector/2x FAN connector
	4xserial SATA 6Gb/s connector port
	1xLPC-DEBUG connector
Integrated Sound	Realtek ALC 6-channal HD Audio Codec onboard
	Provides front audio interface
	Provides front stereo mic interface
Integrated lan	Realtek 10/100/1000 Mbps LAN onboard
Expansion Slot	1xPCI Express x16 slot, 1xPCI Express x 1slot/1xNVME connector
Dimension	Micro-ATX architecture(17*21cm)
