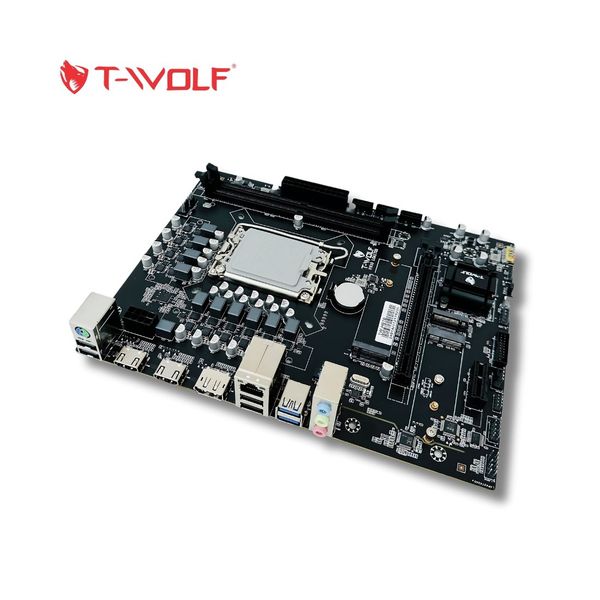

Bo mạch chủ H610 T-Wolf (DDR4, ATX, LGA1700)

Bo mạch chủ H610 T-Wolf (DDR4, ATX, LGA1700)

Thương hiệu: T-Wolf

Mã sản phẩm: H610 T-Wolf

1,460,000₫

Intel® H610 Express Chipset, LGA 1700 supports 12/13/14th;
RAM 2xDDR4 DUAL channel 2400/2666/3200 MHz s/p upto 64GB;
Intel® GbE LAN chip;
Realtek® GbE LAN with Bandwidth Management;
HDMI 2.1 version and HDCP 2.3 and native HDMI 2.1 TMDS;
M2.WiFi Connector.

=====================

Bảo hành 36 tháng

Đặc điểm nổi bật

Thông số kĩ thuật

Thương hiệu	T-WOLF
Mã sản phẩm	TW-H610
SKU	686868510
CPU	Supports 12th CPU (LGA 1700)
Chipset	Intel H610 Express Chipset
Memory	2*288 pin DDR4 SDRAM slots
	Memory up to 64GB
	Supports dual channel DDR4
	Supports DDR4 2400/2666/3200 Memory

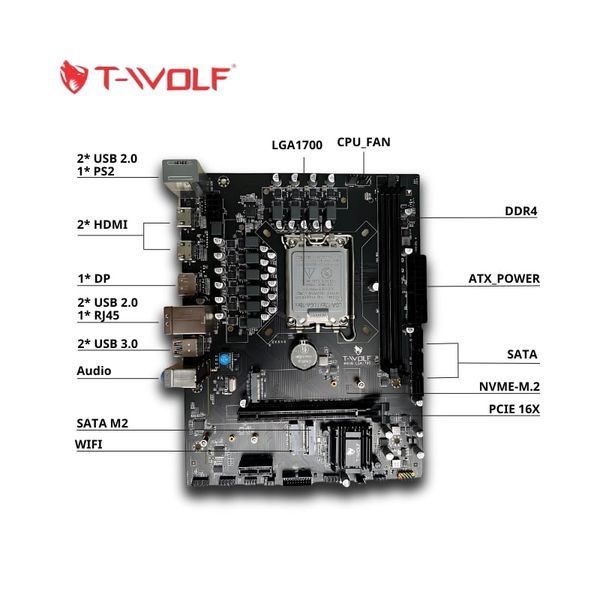

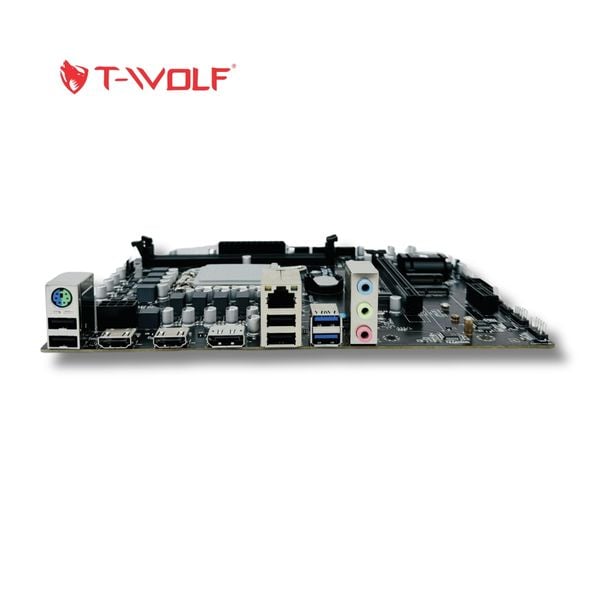

I/O interface	1*PS2 Port
	4*USB, compatible with USB2.0/1.1
	2*USB, compatible with USB3.2
	1*DP Port
	2*HDMI Port
	1*RJ45 Port
	1*3-in-1 Audio port(Line in/Line out/Mic)
Onboard interface	1*24 pin ATX power connector
	1*8-pin ATX 12V power connector
	1USB 2.0 connector, can support 2USB2.0
	1USB 3.2 connector, can support 2USB3.2
	1*F_Audio Connector
	1*F_PANEL connector
	1*Speaker connector
	2*FAN connector
	3*serial Sata/6GB/S connector port
Intergrated sound	with 6-channel HD Audio Codec onboard
	Provides front Audio interface
	Provides front Stereo mic interface
Integrated lan	Realtek® 10/100/1000 Mbps LAN onboard
Expansion slot	PCI Express x16 slot conforms to PCI Express 4.0
	PCI Express x1 slot conforms to PCI Express 3.0
	1xM2 NVMe, 1xM2 Sata/M2 NVMe (Auto Switch), 1xM2 WIFI
Dimension	ATX (17cm x 21cm)
