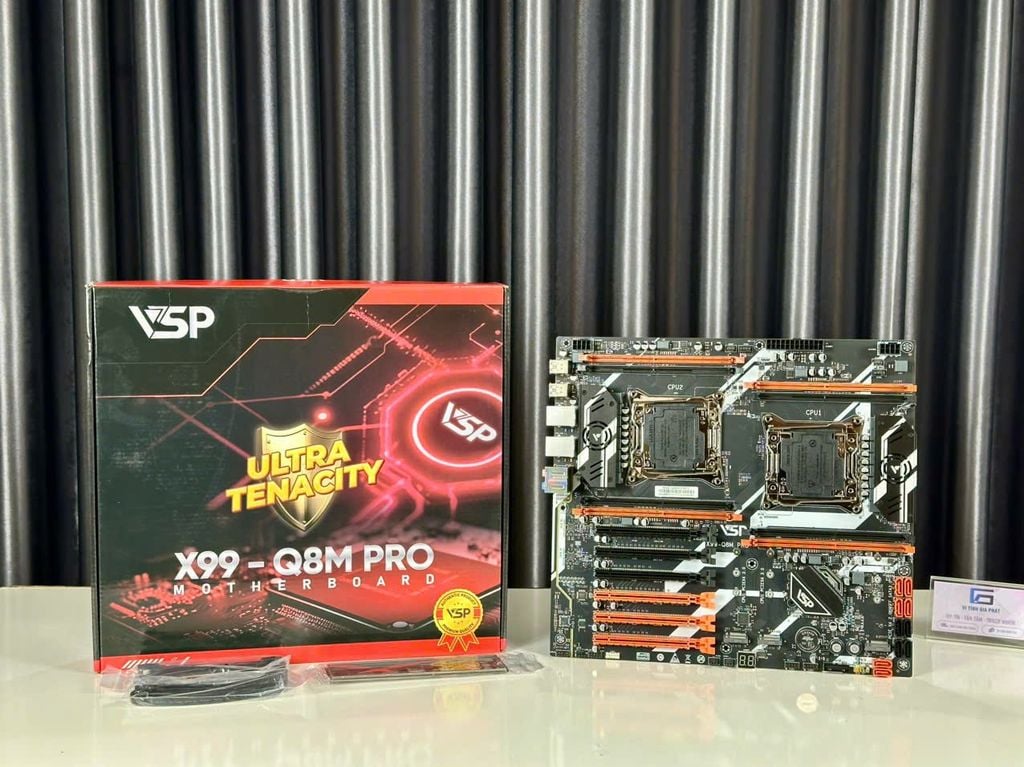

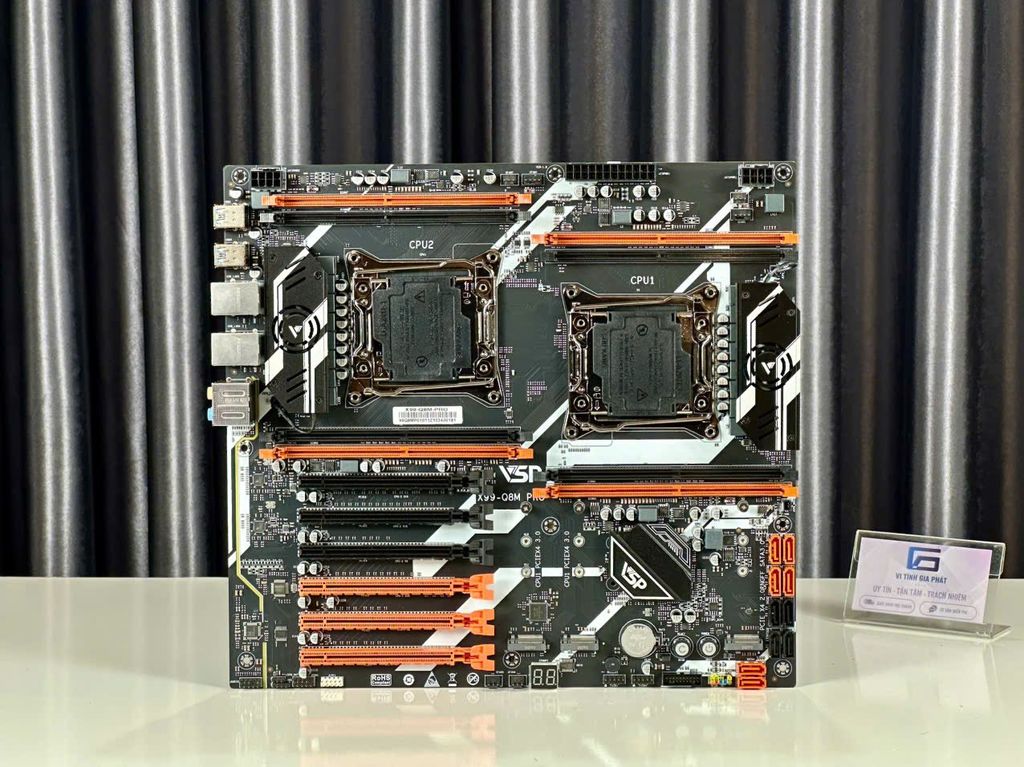

Bo mạch chủ - Mainboard VSP X99 - Q8M PRO - 2 CPU - EATX - Chính hãng

Thương hiệu: VSP

Mã sản phẩm: Q8M PRO

3,000,000₫

Mã sản phẩm: X99 - Q8M PRO
Form Factor: E-ATX
Dimension: 305mm X 330mm
Memory Type: 8 X DDR4 ECC/NON ECC/ECC DIMM, 2133/2400MHZ (Max), Maximum support of 256G (32G X8)
Expansion Interface: 3 X M.2 Slot
(CN1&CN2: PCIE X 4 3.0 From CPU1 1);
(CN3: PCIE X4 3.0/ SATA 3.0 From PCH)
CPU Socket: DUAL-CHANNEL INTEL XEON E5 LGA2011-V3
(TWO CPU MODELS NEED TO BE THE SAME)
SATA: 10 X SATA 3.0
Network Header: 2 X RJ45 0
Network Card Chip: RTL8125BG/2.5G
Power Input: 24 PIN + 2 X 8PIN ATX POWER SOCKET
Bảo hành 12 tháng

Thông số nổi bật

Mã sản phẩm	X99 - Q8M PRO
Form Factor	E-ATX
Dimension	305mm x 330mm
PCIE	PCIE 5/6 Full-Length Slot: PCIE x 16 3.0 (From CPU 2) <br> PCIE4 Full-Length Slot: PCIE x 8 3.0 (From CPU 2) <br> PCIE3 Full-Length Slot: PCIE x 16 3.0 (From CPU 1) <br> PCIE1/2 Full-Length Slot: PCIE x 8 3.0 (From CPU 1)
Memory Type	8 x DDR4 REG ECC/NON ECC/ECC <br> 8 x 32Gb DDR4 (2400/2133/1866MHz)
Expansion Interface	3 x M.2 Slot: (CN1&CN2: PCIE x 4 3.0 From CPU1); <br> (CN3: PCIE x 4 3.0 / SATA 3.0 From PCH)
CPU Socket	DUAL-CHANNEL INTEL XEON E5 LGA2011-V3 <br> (TWO CPU MODELS NEED TO BE THE SAME)
SATA	10 x SATA 3.0
Network Header	2 x RJ45

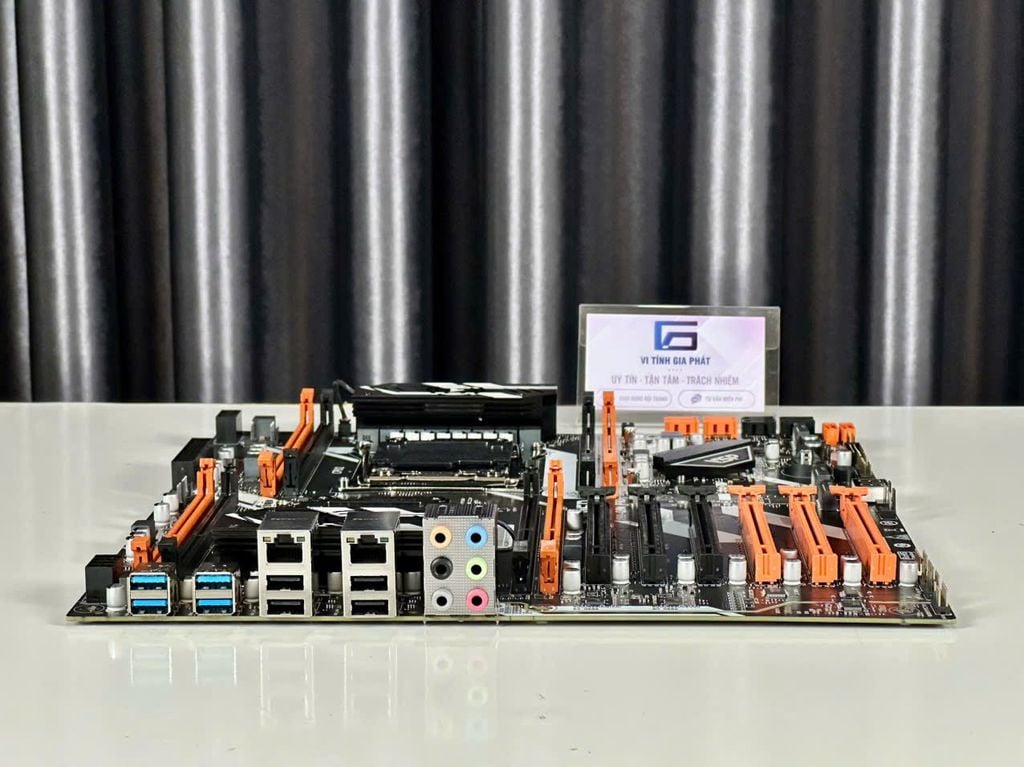

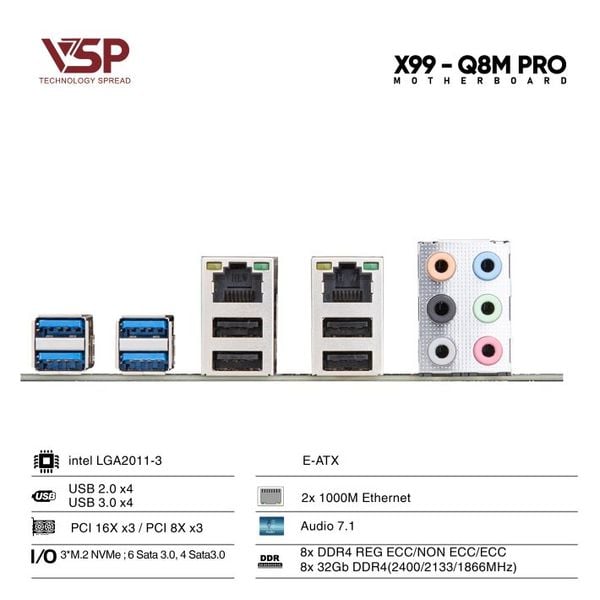

USB Ports	4 x USB 2.0, 4 x USB 3.0 <br> BUILT-IN PINS: 2 SETS OF USB 2.0 PINS (4 USB 2.0 PORTS CAN BE EXPANDED); 1 SET OF USB 3.0 PINS (2 USB 3.0 PORTS CAN BE EXPANDED)
Network Card Chip	RTL8125BG/2.5G
Power Input	24 PIN + 2 x 8PIN ATX POWER SOCKET
