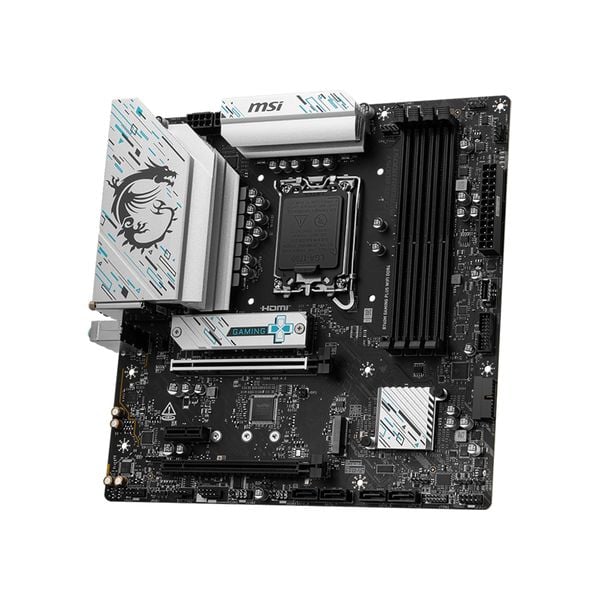

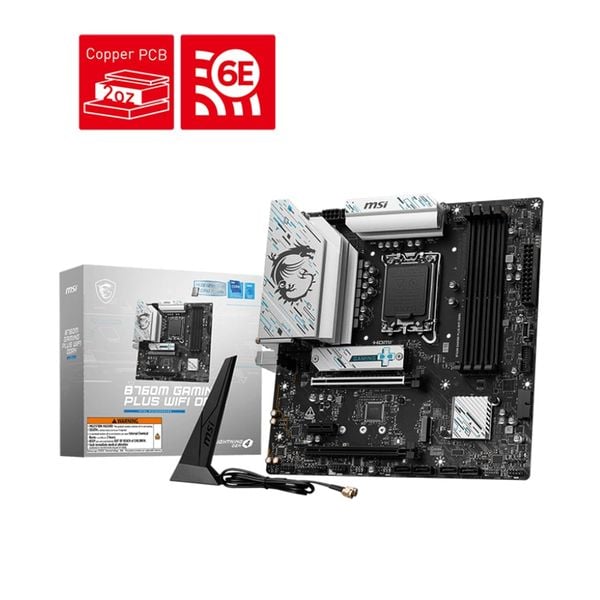

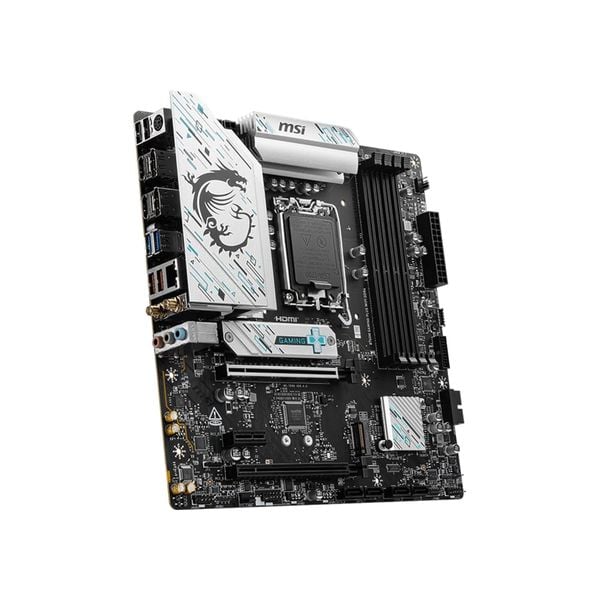

Bo mạch chủ MSI B760M GAMING PLUS WIFI DDR4 - Full VAT

Thương hiệu: MSI
Mã sản phẩm: 4711377248648
3,230,000₫ 3,290,000₫
-2%

Giá đã bao gồm VAT

Socket: LGA1700 Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Kích thước: mATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 2x PCI-E x16 slot, 1x PCI-E x1 slot
Khe cắm ổ cứng: 2x M.2, 4x SATA 6G

=====================

Bảo hành 36 tháng

Sẵn trong kho
Yên tâm mua hàng tại Vi Tính Gia Phát
Hotline hỗ trợ: 0908 952 369 - 0392 033 396
Freeship nội thành TP.HCM (Bán kính 15km)
Bảo hành tận nhà MIỄN PHÍ trong tháng đầu (TP.HCM)
Tư vấn khách hàng tận tình - chuyên nghiệp

Đặc điểm nổi bật

Thông số kĩ thuật
Sản phẩmBo mạch chủ
Tên HãngMSI
ModelB760M GAMING PLUS WIFI DDR4
CPU hỗ trợIntel
ChipsetINTEL B760
RAM hỗ trợ

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Khe cắm mở rộng2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Ổ cứng hỗ trợ2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Cổng kết nối (Internal)1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

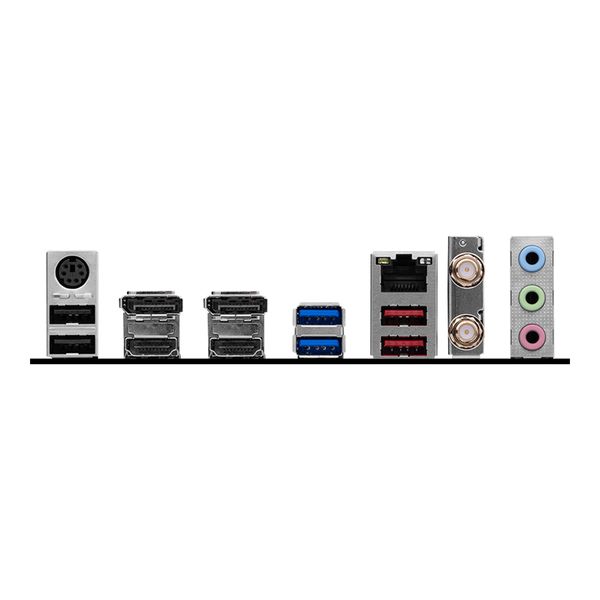

Cổng kết nối (Back Panel)Keyboard / Mouse
DisplayPort
USB 5Gbps Type A ports
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 10 Gbps Type A ports
Audio Connectors
LAN / WirelessRealtek® RTL8125BG 2.5G LAN
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Kích cỡmATX
243.84mmx243.84mm
